Variable frequency series resonant withstand voltage device HZBP-DL
The HZBP-DL variable frequency series resonant withstand voltage device adopts the method of adjusting and controlling the power frequency to achieve
Product details
1、 Product Overview:
The HZBP-DL series cable specific frequency conversion series resonant withstand voltage device adopts the method of adjusting and controlling the power supply frequency to achieve series resonance between the reactor and the tested capacitor, generating high voltage and small current on the tested sample. This is a new method and trend in high-voltage testing that has been widely applied and recognized at home and abroad.
The HZBP-DL series variable frequency series resonant withstand voltage device adopts a dedicated broadband voltage regulation power supply with a voltage regulation range of AC0-400V and a frequency modulation range of 20-300Hz. The frequency fineness can reach 0.1Hz, and the output waveform is good throughout the entire frequency range; Ensure instrument stability and safety with minimal weight and volume. The HZBP-DL series frequency conversion resonant withstand voltage device consists of a frequency modulation and voltage regulation power supply, an excitation transformer, a reactor, and a capacitive voltage divider.
Product alias: Variable frequency resonance, Variable frequency series resonance withstand voltage device, Variable frequency series resonance, Series resonance, Series resonance transformer, Series resonance test equipment, Generator AC withstand voltage resonance boost device, Resonance test device
2、 Product features:
Variable Frequency Power Supply
1、 Functional features and parameters:
1. 220V or 380V single-phase mains power is more convenient for on-site power supply.
2. Touchscreen human-machine dialogue settings are convenient and easy to operate.
3. Frequency regulation fineness 0.1Hz instability ≤ 0.01%
4. Quickly and automatically scan the resonant frequency and boost the voltage according to the set stage.
5. Equipped with load point fast flashover protection.
6. Having capacitance, inductance, and frequency calculation functions makes it more convenient for users to operate and set.
Functional characteristics and parameters of high-voltage reactors:
1. Lightweight, suitable for on-site handling with a weight not exceeding 30kg
2. The dry structure adopts constant temperature vacuum epoxy casting for better insulation effect.
3. Standard series parallel interface and connection identification to avoid wiring errors.
4. Fully loaded and capable of continuous operation.
5. There is a temperature rise vent to prevent natural temperature rise during long-term operation and regulate expansion
Characteristics and parameters of incentive transformer function:
1. Mobile and convenient for on-site use
2. The coil adopts vacuum impregnation technology with high insulation performance, moisture-proof and anti fouling.
3. Multi tap can flexibly apply different loads
Functional characteristics and parameters of compensating capacitors:
1. Small size and light weight
2. Excellent electrical performance and high reliability
3. Execution standard: GB/T2900.16-1996
4. Loss tangent: ≤ 0.0010 (1000Hz)
Product Parameters
Technical Indicators:
|
Rated output voltage |
0-220kV (AC RMS) and below |
|
output frequency |
20～300Hz |
|
Resonant voltage waveform |
Pure sine wave waveform distortion rate ≤ 1.0% |
|
Full load working time |
Continuous working time of 60 minutes |
|
System quality factors |
≥ 20 under maximum load |
|
Frequency regulation fineness |
0.1Hz |
|
Instability |
≤0.01% |
|
working power supply |
AC single-phase 220V or two-phase 380V ± 10% power frequency 50Hz ± 5% |
Configuration Table of Voltage Endurance Devices for 35kV and Below Cables:
|
Product model name |
Variable Frequency Power Supply |
Reactor (dry-type) |
Excitation transformer (dry-type) |
voltage divider |
Scope of Application |
|
HZBP-DL44/22 |
2.5kW |
1A/22kV two units |
2.5kVA/1kV |
25kV |
10kV cable ≤ 1km |
|
HZBP-DL88/22 |
4kW |
Two 2A/22kV units |
4kVA/1kV |
25kV |
10kV cable ≤ 2km |
|
HZBP-DL132/22 |
6kW |
2A/22kV three units |
6kVA/1/3kV |
60kV |
10kV cable ≤ 3km |
|
HZBP-DL176/22 |
7.5kW |
Four 2A/22kV units |
7.5kVA/1/3kV |
60kV |
10kV cable ≤ 4km |
|
HZBP-DL264/22 |
10kW |
Six 2A/22kV units |
10kVA/1/3kV |
60kV |
10kV cable ≤ 6km |
|
HZBP-DL330/22 |
15kW |
Six units of 2.5A/22kV |
15kVA/1/3kV |
100kV |
10kV cable ≤ 8km |
|
HZBP-DL640/32 |
25kW |
Eight units of 2.5A/32kV |
25kVA/1/3/5kV |
200kV |
10kV cable ≤ 10km |
Configuration Table of Voltage Endurance Devices for 110kV and Above Cables:
|
Product model name |
control cabinet |
Reactor (oil immersed) |
Excitation transformer (oil immersed) |
voltage divider |
Scope of Application |
|
HZBP-DL1300/130 |
50kW |
Two 5A/130kV units |
50kVA/3/5kV |
150kV |
35kV cable ≤ 2km |
|
HZBP-DL2600/130 |
100kW |
5A/130kV four units |
100kVA/3/5/10kV |
220kV |
35kV cable ≤ 3km |
|
HZBP-DL3200/220 |
160kW |
Four 4A/220kV units |
160kVA/5/10kV |
160kV |
110kV cable ≤ 5km |
|
HZBP-DL6400/220 |
320kW |
Four 8A/220kV units |
320kVA/5/10kV |
320kV |
110kV cable ≤ 10km |
Product Brochure
Product accessories
|
name |
quantity |
unit |
|
Variable Frequency Power Supply |
1 |
Taiwan |
|
Incentive Transformer |
1 |
Taiwan |
|
reactor |
2~8 |
Taiwan |
|
voltage divider |
1 |
Taiwan |
|
Load capacitance |
1 |
Taiwan |
|
Voltage divider signal line |
1 |
root |
|
dedicated connection cable |
several |
root |
|
Instruction Manual |
1 |
this |
|
Inspection Report |
1 |
copy |
|
Certificate of Conformity |
1 |
Zhang |
Product Atlas
-

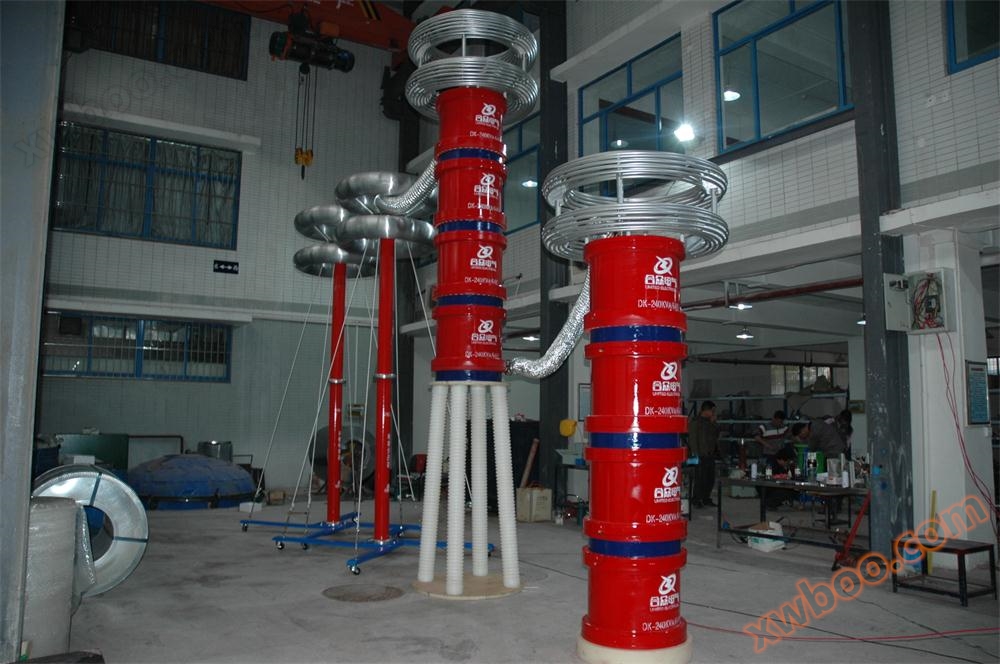

Variable frequency series resonance
-
Delivery of series resonant voltage withstand device
-
Variable frequency series resonant withstand voltage device
-
Variable frequency series resonance

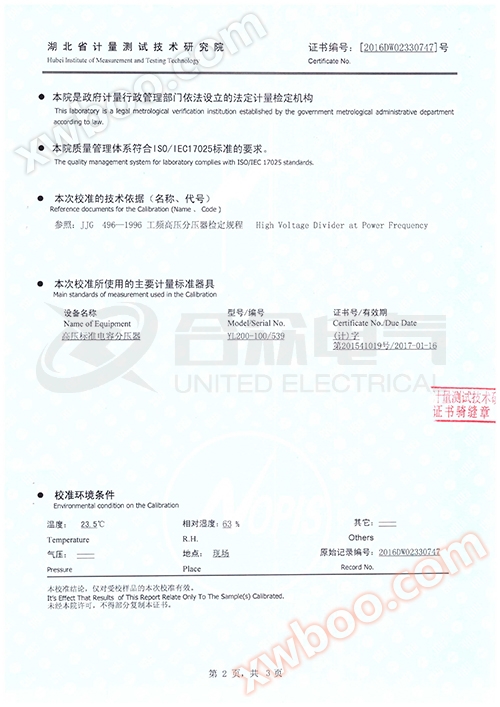

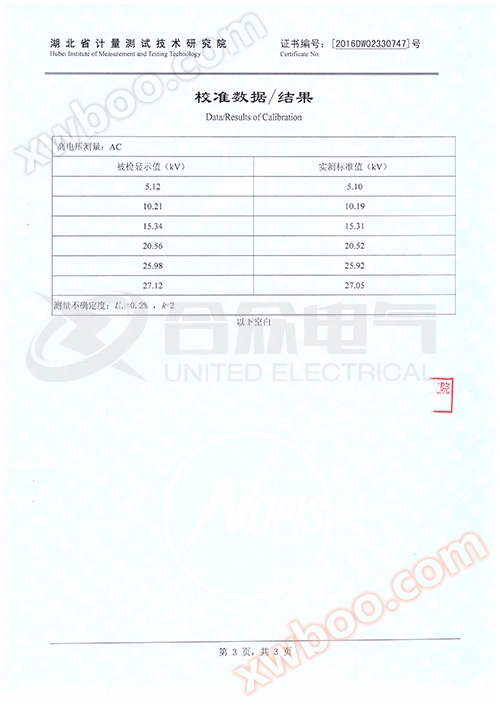

Product Certificate
The enterprise's products are strictly produced in accordance with international and national standards and industry regulations, and have passed the testing of national, provincial, and municipal power research institutes, measurement centers, and authoritative power departments. They have fully passed the ISO9001 international quality management system certification, the People's Republic of China Manufacturing Measuring Instrument License, GB/T19001-2008 quality management system requirements.
