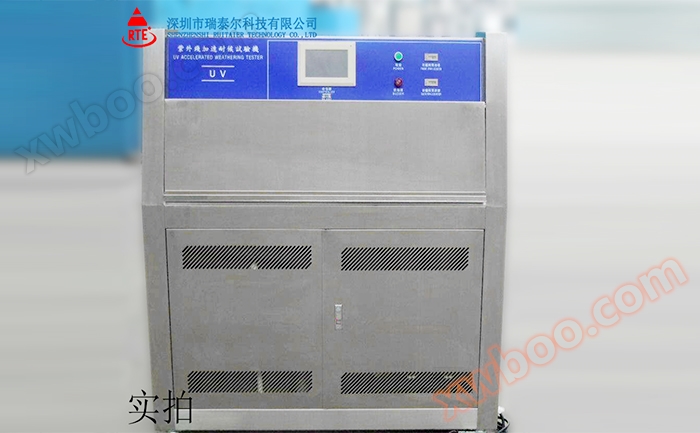

UV accelerated aging chamber | UV box type aging testing machine
UV accelerated aging chamber | UV box type aging testing machine
Product details
UV accelerated aging chamber | UV box type aging testing machineOverview
The UV aging testing machine can simulate the hazards caused by sunlight, rainwater, and dew on materials. UV uses fluorescent ultraviolet (UV) lamps to simulate the effect of sunlight exposure, and utilizes cold simulated moisture in rainwater and dew. The tested material is placed in a cyclic program of alternating light and moisture at a certain temperature for testing. UV testing for several days or weeks can reproduce the hazards that occur outdoors for months to years. The types of hazards include fading, discoloration, loss of gloss, powdering, cracking, turbidity, foaming, brittleness, strength degradation, and oxidation.
|
model |
RTE-UV-1 |
RTE-UV-2 |
|||
|
Test area size mm |
Sample rack frame 493 * 290 W * H, a total of four pieces |
1140*500*500 |
|||
|
Sample template size mm |
75 * 300 W * H, 6 sample templates per sample rack frame |
1300 * 1810 * 1370 height adjustable sample holder 1 piece |
|||
|
Dimensions W * H * Dmm |
1300*1480*550 |
1800*1660*800 |
|||
|
performance |
temperature range |
Radiation cycle: Room temperature -+70 ℃ Condensation cycle: Room temperature -+-60 ℃ Spray cycle: Room temperature water spray |
|||
|
Humidity range |
Radiation cycle: 30% -75% R.H Condensation cycle: 75% -100% R.H |
||||
|
Temperature deviation |
± 2℃ |
||||
|
Usage environment |
+5℃ --+30℃ |
||||
|
Lamp type |
UV-A340nm UV-B313nm |
||||
|
Lamp wavelength range |
UV-A wavelength range 320-400nm, peak wavelength 340nm UV-B wavelength range 280-400nm, peak wavelength 313nm |
||||
|
Center distance between sample and lamp tube |
50mm±2mm |
||||
|
Distance between the center of the lamp tube and the lamp tube |
70mm±2mm |
||||
|
Lamp Quantity |
8 pieces |
||||
|
Lamp wattage |
40W (single unit) |
||||
|
Radiation intensity |
0-0.8W/m2(340nm）/0-0.7W/m2(313nm) |
||||
|
Radiation intensity meter |
The standard model does not have an irradiance meter. If an irradiance meter is required, the price will be charged separately |
||||
|
Radiation intensity control |
Standard equipment: manually adjust the knob to adjust the irradiation intensity Equipment with irradiance meter: Control instrument automatically controls irradiance intensity |
||||
|
Water supply system |
Manual and automatic dual water supply mode |
||||
|
Material of inner and outer boxes |
Advanced brushed stainless steel |
||||
|
Heating humidifier |
Electric Steam Humidifier |
||||
|
electronic control system |
Operational Interface |
5.7-inch color touch screen |
|||
|
Operation mode |
Program controlled/fixed value operation |
||||
|
Spray method |
Boosting pump controls spray water pressure |
||||
|
Temperature input |
PT-100 sensor |
||||
|
Security Configuration |
Leakage, overload power-off protection, over temperature protection, water shortage, grounding protection |
||||
|
power supply |
220V±10V%，50HZ ， 5.5KW |
||||
UV box type aging testing machine testing standard
This UV box type aging testing machine is suitable for performance reliability testing of various industrial products. It is designed and manufactured in accordance with the corresponding standard clauses such as GB/T14522-93 "National Standard of the People's Republic of China - Plastic, Coating, and Rubber Materials for Mechanical Industry Products - Accelerated Test Method for Artificial Climate" GB/T16585-1996 "National Standard of the People's Republic of China - Test Method for Artificial Climate Aging of Vulcanized Rubber (Fluorescent UV Lamp)" and GB/T16422.3-1997 "Exposure Test Method for Plastic Laboratory Light Sources";
The UV aging test chamber complies with international testing standards: ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3、ISO 11507； EN 534； prEN 1062-4、 BS 2782； JIS D0205； All current UV aging test standards such as SAE J2020.
Shenzhen Ruitaier Testing Instrument Co., Ltd. is a high-tech enterprise specializing in the independent research and development, production, and sales of various environmental testing equipment and testing devices. We regard product quality as the lifeblood of the enterprise, continuously improve product quality, and strengthen management by providing users with more high-quality services. At the same time, it also cultivates a team of professional technical personnel and management personnel with rich practical work experience, complete service system, and high quality.
