The transmitter series measures the liquid level by converting the buoyancy generated by the exchange body (i.e. float) at different heights of the liquid level into a pneumatic standard signal based on the principle of displacement balance. The transmitter can be used for measuring liquid levels in industries such as chemical, petroleum, metallurgy, and power. The measuring components of the transmitter are suitable for working under non corrosive conditions. Using compressed air as the working gas source, it can be used in devices that require explosion-proof requirements, except for general devices.

Measurement accuracy of transmitter: 2%

Specific gravity of the tested liquid: 0.6-1.2g/cm³

● Medium temperature: ≤ 200 ℃

● Work pressure: 4MPa

● Air source: 0.14Mpa compressed air

Output pressure: 0.02-0.1Mpa pneumatic signal

Output pressure transmission distance: When the inner diameter of the output pipeline is not greater than 4mm, the pipeline length is 60m, and the transmission time does not exceed 5.

● Environmental temperature: -10~50 ℃

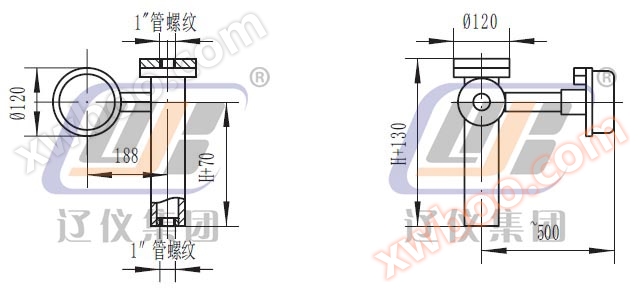

UTQ-201 Pneumatic Float Liquid Level Transmitter Outline Dimensional Drawing

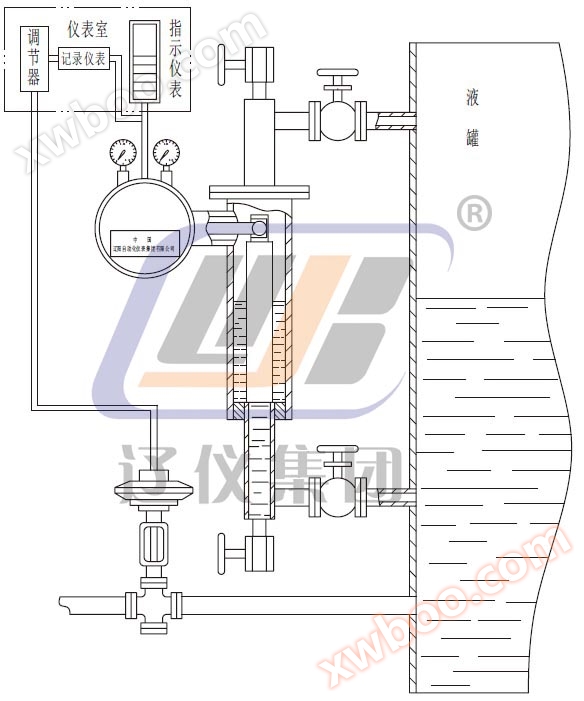

Installation diagram of UTQ-201 pneumatic float level transmitter
