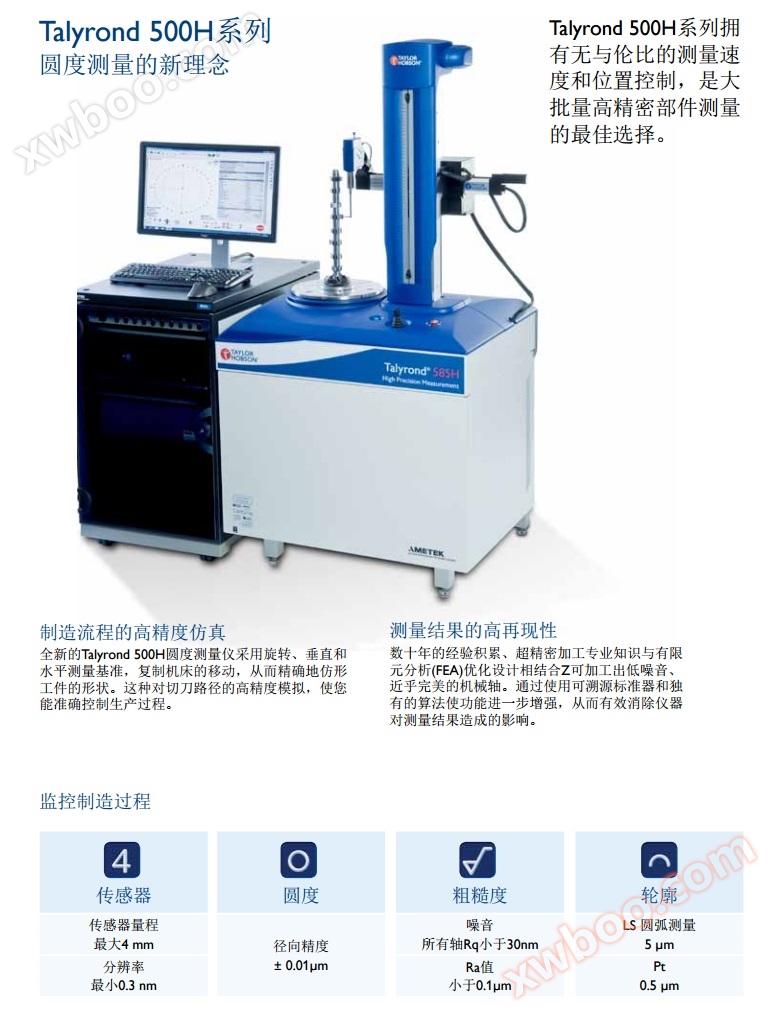

Talyrond 565HRoundness measuring instrumentIt is an extremely popular measurement system that can provide parameters such as roundness, cylindricity, and straightness. This system is designed specifically for stability and accuracyRoundness meterIt consists of a frictionless air bearing spindle mounted on a cast iron base and a vertical straightness reference.

There are 6 systems available for your different needs to choose from, with a cylindrical height range from 300mm to 900mm, and you can choose automatic or manual centering and leveling. Talyrond 565H is an economical modelCylindricity meterIt has complete traceability to international standards.

• Automatic sensor calibration

• Automatic centering and leveling

• High precision air bearing spindle accuracy+/-0.015 um

• Sensor resolution 0.3 nm

• Vertical column axis of 300mm, 500mm, 1000mm or 1200mm
