SF6 high-speed recovery device (Winfoss-R1Tou)
Brand: WINFOSS Model: Winfoss-R1Tou Vacuum pump: 40m3/h, original two-stage rotary vane vacuum pump. SF6 oil-free compressor: 15m3/h, exhaust pressure
Product details

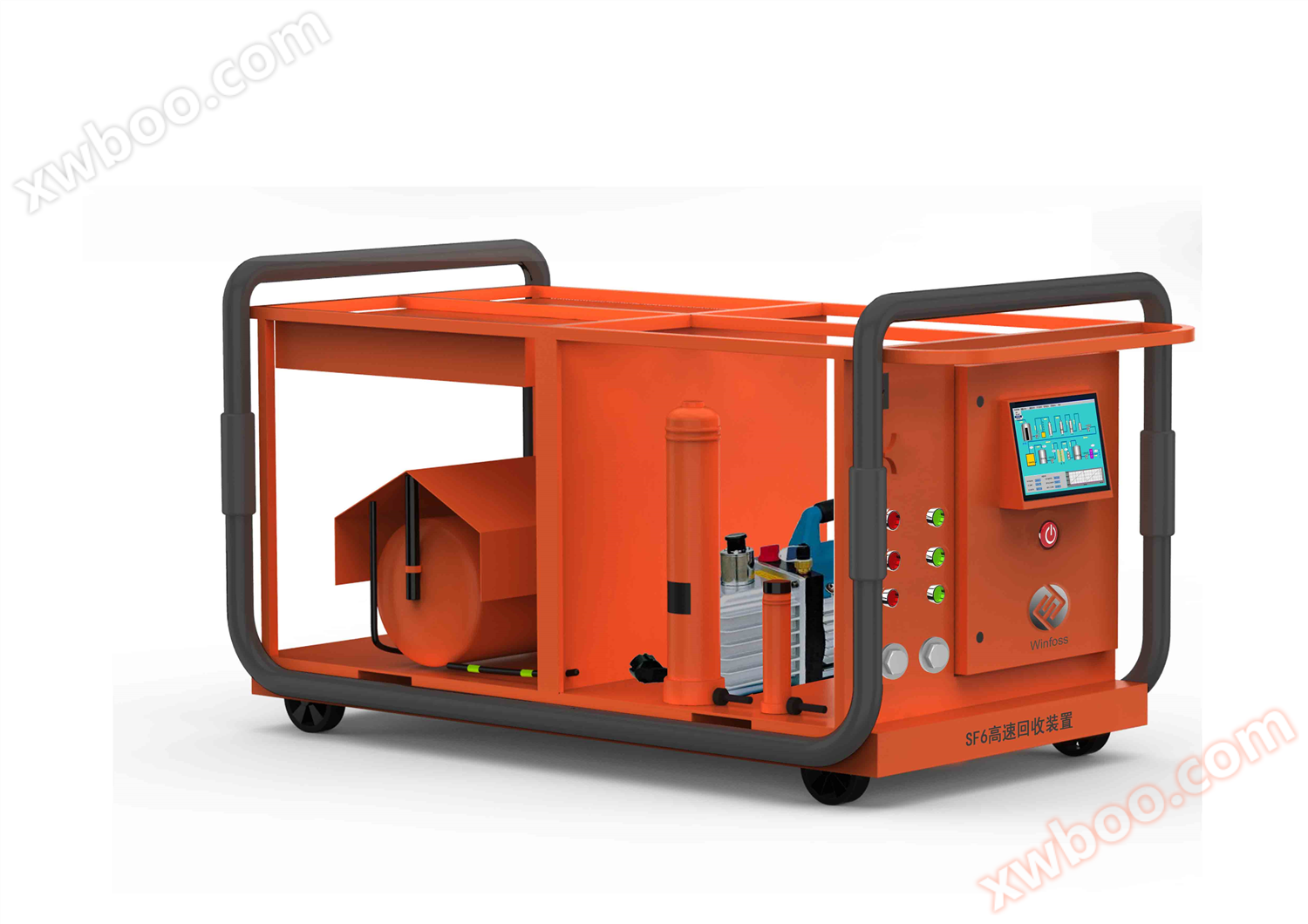

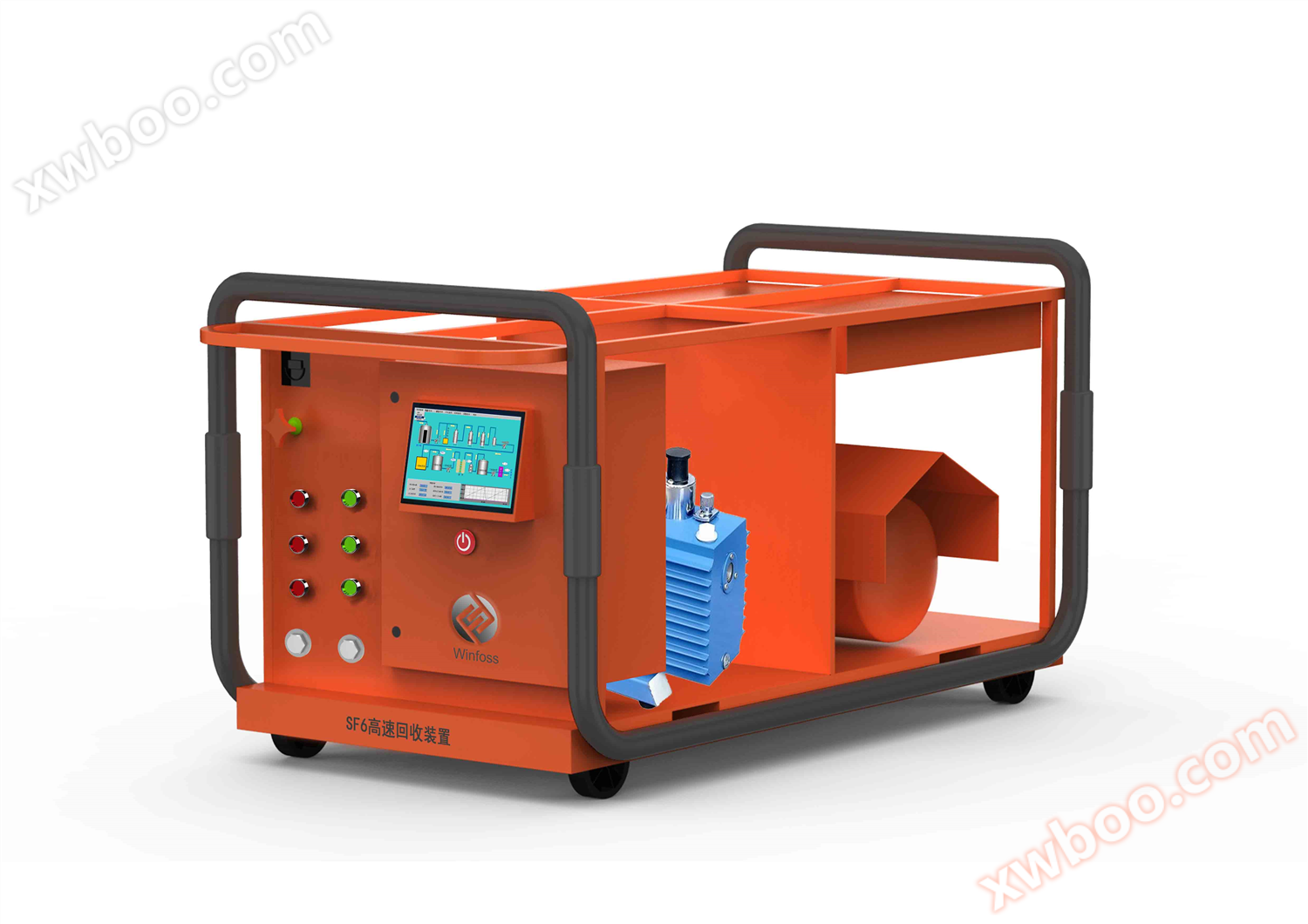

SF6High speed recycling device（Winfoss-R1Tou）
American negative pressure oil-free compressor, high-pressure liquefaction technology, more powerful recycling function; American regenerative molecular drying filter, efficiently removes moisture and dust; One click touch, automatic recycling, filling and vacuuming functions!
Overview

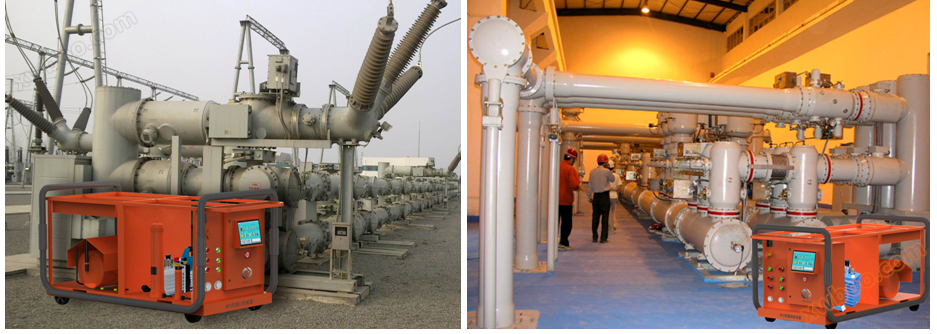

SF6High speed recycling device（Winfoss-R1Tou）It is a moderately sized productFull functionality, compact structure,SF6The compressor is completely oil-free, greatly reducing processing and filtration costs. The application of this technology meets the high safety requirements of high-voltage electrical switch manufacturing enterprises and the power industry in the production process. The entire device includes: oil-freeSF6Compressors, vacuum compressors, vacuum pumps, digital vacuum gauges, electromagnetic vacuum devices, low-temperature condensing devices, regenerative filter dryers, high-pressure solenoid valves, instruments, safety controllers, etc., with the main components imported in their original packaging.
feature
l SF6Dedicated enclosed compressor, no leakage.
l High pressure condensation liquefaction technology enables faster recovery speed.
l Double stage single-chip vacuum pump with fast vacuum pumping speed.
l Multiple safety valve settings to eliminate safety hazards.
l Polymer filters do not require frequent replacement of adsorbents.
l The interface is concise and clear, and the operation is simple.
l Liquid or gas recharge.
l Liquid storage in gas storage tanks.
l Touch operation, one click automatic vacuuming and recycling (this function is suitable forWinfoss-R1Toutype）.
Feature Overview
l recycleAfter activating electrical control components such as high-precision vacuum pumps and electromagnetic vacuum devicesSF6Gas extraction.
l purifyEquipped with a complete set of purification devices for recyclingSF6The gas is purified through multiple drying, filtration and separation processes.
l evacuate: YesSF6The residual gas inside the switch body is passed through electromagnetic vacuum devices and driving devices, and the pressure differential is activated to makeSF6The vacuum state inside the switch body meets the standard requirements.
l inflateSupplement a certain amount of electrical equipment by starting the compressor and drive device inside the deviceSF6Gas, inflation capacity can be set according to equipment regulations.
l liquefaction: Extract theSF6passSF6The high-pressure compressor liquefies directly and stores it in a gas storage tank or directly presses it into a steel cylinder.
l transferThe equipment can store the gas in the gas storage tank for a long time, and can also be used according to actual applicationsSF6Gas is transferred to the steel cylinder.
Technical Specifications
|
model |
Winfoss-R1Eco/Winfoss-R1Tou |
|
|
type |
High-pressure liquefaction,Handcart style |
|
|
Working environment temperature |
-20℃～45℃ |
|
|
SF6Oil-free compressor |
15m3/h, exhaust pressure50bar |
|
|
Oil-free vacuum compressor |
10m3/hThe final vacuum degree is less than33 mbar |
|
|
vacuum pump |
40m3/hThe final vacuum degree is less than1mbarOriginal two-stage rotary vane vacuum pump |
|
|
Liquefaction method |
High-pressure liquefaction |
|
|
Vaporization method |
electric heating |
|
|
Dry filtration method |
Vacuum heating activation regeneration |
|
|
Annual leakage rate |
≤0.5% |
|
|
power supply |
three-phase four-wire system 3Φ380V |
|
|
noisedB(A) |
≤75 |
|
|
Operation method |
Hand valve control (applicable toWinfoss-R1Eco）One click touch control（Winfoss-R1Tou） |
|
|
store liquid can |
container category |
Class I |
|
Design pressure（MPa） |
5.0 |
|
|
Design temperature (℃) |
40 |
|
|
Storage container capacity（L） |
300L |
|
|
Storage container liquid storage capacity（kg） |
300kg |
|
configuration
l Winfoss-R1Eco/Winfoss-R1ToutypeSF6Medium sized high-speed recycling vehicle 1Taiwan
l 5mHigh pressure conveying pipe (liquid conveying) 1root
l 5mLow pressure conveying pipe (gaseous conveying) 1root
l Conversion joint between recycling vehicle and switchgear 1set
l Steel cylinder connector 1only
l Dust and rain cover 1only
l Chinese instruction manual 1this
l User information such as factory inspection reports 1set
Service Guarantee
l Provide on-site training guidance and conduct on-site demonstration operations.
l Provide detailed Chinese manuals and user guidance.
l One year free warranty, lifetime spare parts support and maintenance.
l User profile information management, customer service department provides bi annual follow-up and tracking services.
l hotline365Answer user inquiries 24/7.
