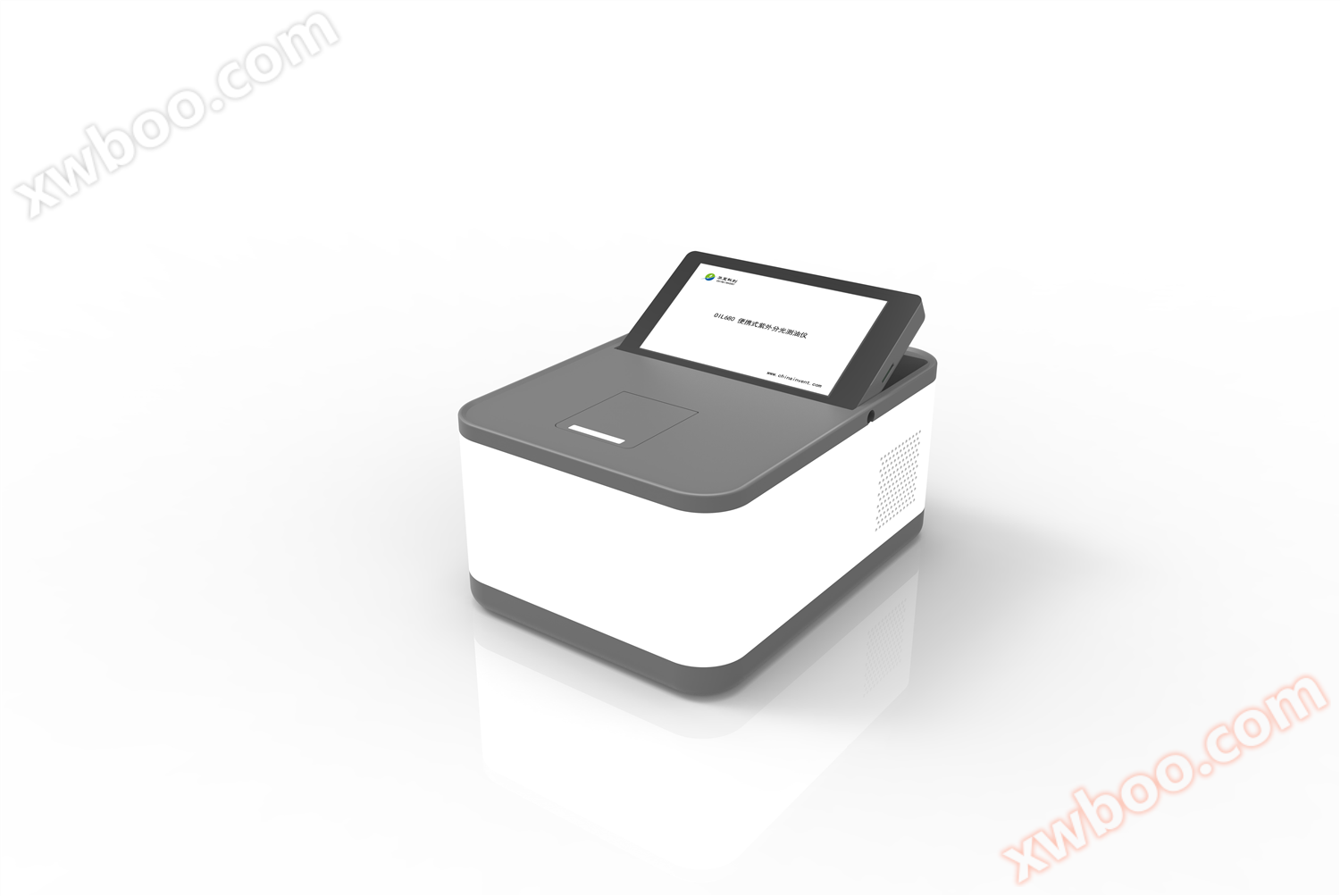

OIL680Portable UV spectrophotometer for oil analysis

1. Product Introduction

Adopting an integrated design approach, the instrument is compact, easy to carry, and convenient for on-site use, while complying with the national environmental protection standard HJ970-2018 of the People's Republic of ChinaDetermination of Water Quality and Petroleum by UV spectrophotometry (Trial).

2. Technical principles

According to HJ970-2018Based on the "Determination of Petroleum in Water Quality by UV spectrophotometry" (Trial), a quantitative amount of n-hexane is injected into the water sample, and oil substances in the water are extracted by magnetic stirring. The extraction solution is dehydrated and magnesium silicate adsorbed to remove polar substances such as animal and vegetable oils225nmThe absorbance was measured at the wavelength, and the petroleum content and absorbance values followed the Lambert Beer law.

3. application area

Used for the determination of petroleum in surface water, groundwater, and seawater.

4. Instrument characteristics

1)

The exclusive safety protection box and its baffle can be used as an operation test bench, which is easy to carry, flexible to operate, and convenient for field testing.

2)The integrated optical system design has good stability and high seismic performance, and can work in a moving state.

3)Long working hours, equipped with high-power lithium batteries, continuous measurement time greater than 84At the same time, it is equipped with an external cable that can be connected to the car power supply for measurement, making the on-site measurement time longer.

4)Can extract 1 simultaneously

～

A water sample5)

Adopting 7

Inch industrial tablet computer control, clear display, easy operation

6)Equipped with specialized analysis software, it integrates spectrum analysis, scanning, analysis, and calculation, and has a computer software copyright certificate.

7)

5. Supports serial port, Bluetooth WiFi

Various communication methods can be used to flexibly achieve local and remote instrument management and information transmission

8)

One stop service, equipped with a dedicated extraction box, can achieve integrated sampling, extraction, and measurement, making on-site measurement convenient 9)

The portable extraction device has an automatic extractor, sampling extraction bottle, and efficient and fast operation 10) High analysis efficiency, instrument in 30

Complete the analysis and determination of a sample within seconds 11)

Applicable to the latest standard requirement reagent: n-hexane.Technical indicators and parameter performance11Protection level: IP653Extraction ratio: any ratiooptical system

CT type optical path, proportional beam

light source

：

Flashing xenon lamp

spectral bandwidth： 3 nm0Instrument detection limit: 3SD ≤ 0.02mg/L（2measure4Secondary blank calculation8Multiple standard deviation12)16Method detection limit: 0.001mg/LBasic measurement range: 0.0-800mg/LRepeatability: RSD ≤ 1%

Accuracy error:<2% Correlation coefficient: R>0.999

（

、 、 、

、 、

、 20mg/L ）

wavelength range ： 200 ~ 1000 nm

Absorption range: -0.3-2.5A
