Kingscan ® IVe fully automatic Brinell hardness indentation measurement system
Kingscan ® IVe is the latest upgraded version of KingTester Corporation's fully automatic Brinell hardness indentation measurement system in 2017 This system has completely ended the traditional mode of measuring and calculating Brinell hardness using human eye optical microscopy, and is a perfect combination of modern digital technology and computer measurement technology. This system can be used in conjunction with KING PortableBrinell hardness testerRealize on-site measurement, and can also be used as a standalone Brinell hardness measurement system with anyBrinell hardness testerThe Brinell hardness automatic measurement system is also applicable for laboratory measurements. It has the characteristics of speed, accuracy, high repeatability, and high cost-effectiveness.
Kingscan ® IVe can provide accurate test results for users without any prior experience. When measuring, simply place the camera on the Brinell hardness indentation, move the camera to make the indentation inside the electronic sight, and press the measurement button on the camera or any key on the computer keyboard to complete the measurement. Kingscan ® IVe will scan and measure up to 800 points around the circumference of the indentation, obtaining 400 Y-axis diameters and 400 X-axis diameters. Then, according to the ASTM E10 Brinell hardness principle, the indentation diameter can be calculated, and the indentation diameter (mm) and Brinell hardness value (HBW) can be displayed within 1 second. At the same time, the measurement software interface also displays other characteristic parameters, including indentation roundness (RND), ball diameter, test load, test workpiece number, and measurement time.
Kingscan ® IVe Technical Parameters
1. Test force range: 62.5 kgf, 100kgf, 125kgf, 187.5kgf ,250 kgf, 500 kgf ,750 kgf, 1000 kgf , 1500 kgf, 3000kgf
2. Pressure head diameter: 2.5mm, 5mm, 10mm
3. Hardness measurement range: 8HBW-650HBW
4. Measurement range of indentation: 0.1mm-6.5mm
5. Indentation measurement accuracy: ± 0.25%
6. Magnification: 20X
7. Working environment: temperature 10-40 ℃, relative humidity<85%
8. Power supply: USB power supply for computer
9. Compliant with: ASTM E10-15a Type A measuring device
Kingscan ® Partial functions achievable by IVe software
Kingscan ® Partial functions achievable by IVe software

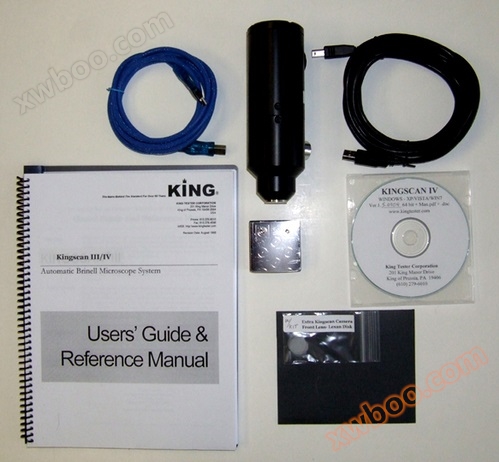

Kingscan IVe supply method:
1. Desktop computer configuration for laboratory use:
A: High speed CCD camera with sturdy formaldehyde resin casing protection;
B: One 15 foot (4.5 meters) and one 6-foot (1.8 meters) USB cable each;
C: Verification test block;
D: Kingscan ® IVe software data disk;
E: Original factory calibration report;
F: User guide and reference manual;
G: Comes with 4 lenses;
H: Desktop computer:
2-inch tablet integrated configuration for on-site use:
A: High speed CCD camera with sturdy formaldehyde resin casing protection;
B: Computer connection hinge;
C: Verification test block;
D: Kingscan ® IVe software data disk;
E: Original factory calibration report;
F: User guide and reference manual;
G: Comes with 4 lenses;
H: tablet PC;
I： Safety box
K: Dedicated charging base
Can be used in conjunction with a King Brinell hardness tester
