JY3WG-1200A type traction air delivery orchard pesticide spraying machine

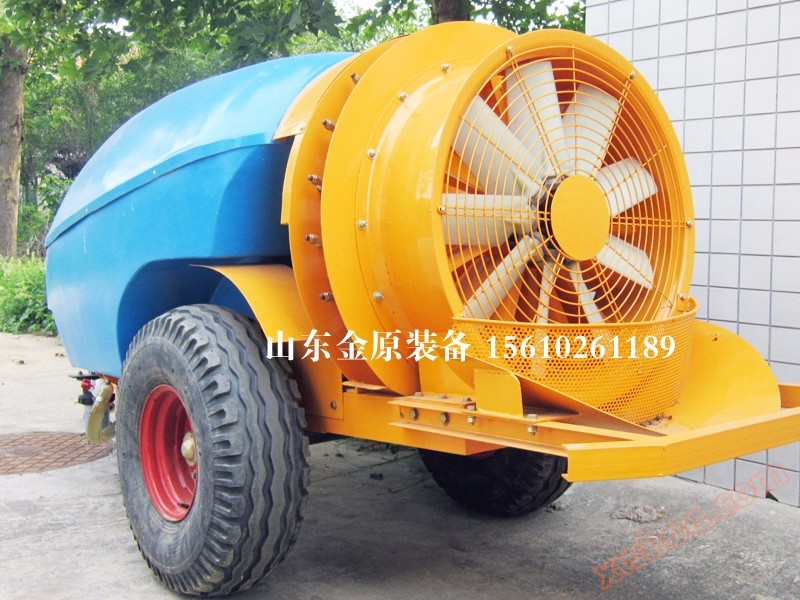

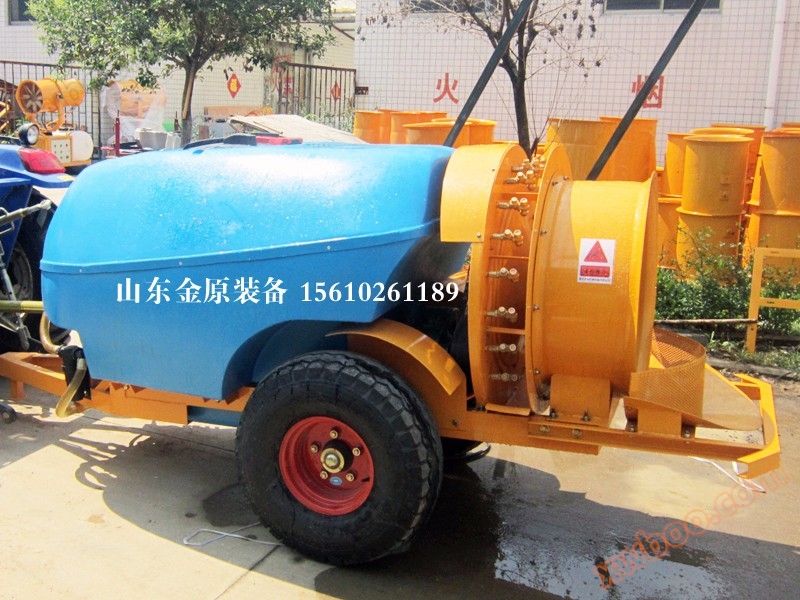

JY3WG-1200A tractive pneumatic orchard sprayer is used together with tractors of more than 30 horsepower. The PTO transmission shaft drives the spray pump and spray fan at the same time. With simple mechanical transmission, the driver can easily operate the machine independently. When the machine is moving, under the joint action of the medium pressure fan and the high pressure drug pump, the liquid medicine is uniformly atomized, and the droplets are extremely fine. With the help of the super large and soft air flow, the positive and negative sides of the inner and outer fruit branches and leaves can quickly attach the liquid medicine, saving water and medicine by more than 30%. The fan is driven by the gearbox, which can adjust the atomization effect, and adapt to sparse or new planting parks, and dense or tall fruit trees parks.

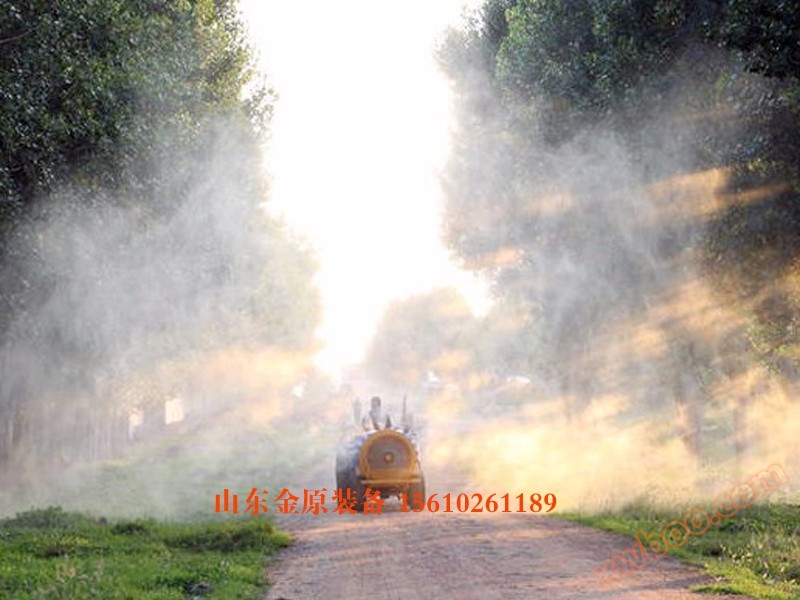

The spray of JY3WG-1200A tractive pneumatic orchard sprayer is designed as a fan. Driven by high-pressure air flow, it forms a 270 degree fan atomization working effect, widens the liquid radiation surface, and ensures that no dead corner is left after the orchard is sprayed. The daily working efficiency is more than 300 mu, and the operating efficiency is more than 20 times that of the general sprayer. Adopting a high air volume and low-pressure fan, with soft and surging air mist, it can penetrate more thoroughly and does not damage the fruit. The high-strength PE fan blades are strong, tough, safe, and do not break. All load-bearing frame parts are made of new integral profiles from large steel mills with a thickness of 2.5mm or more. The frame and fan are all treated with shot blasting and spray coating technology for corrosion prevention.

The JY3WG-1200A traction type air delivery orchard pesticide spraying machine is suitable for the prevention and control of pests and diseases in orchards, such as standardized forest pesticide spraying operations for apples, grapes, peach trees, kiwifruit, pear trees, apricot trees, hops, etc.

Note: The prices indicated in some product information are product deposits. Please consult 0536-6263089 for details

The main configuration parameters of JY3WG-1200A traction type air delivery orchard pesticide spraying machine are:

Model: JY3WG-1200A

Supporting tractor power: above 30HP

Connection method: PTO (tractor rear power output shaft)

Medicine box capacity: 1200L

Transmission: Equipped with a gearbox

Spray height: greater than 8M

Spray width: greater than 18M

Spray pump: triplex diaphragm pump

Nozzle: Imported

Flow rate: 15-42L/min

Blade diameter: 800mm

Tire: Vacuum wide tire

Spray control mode: it can be closed by sections

Dimensions: 3450 * 1245 * 1445mm
