Input liquid level transmitter 2301 type
Introduction: The 2301 input type liquid level transmitter adopts a high-performance diffusion silicon pressure sensor as the measuring element. After
Product details
Product Description
The 2301 input type liquid level transmitter uses high-performance diffusion silicon pressure sensors as measuring elements. After high reliability amplification processing circuits and precision temperature compensation, the gauge pressure or absolute pressure of the measured medium is converted into standard voltage or current signals. This product is compact in size and easy to use and install. It can be directly immersed in water to measure the liquid level height from the end of the transmitter to the liquid level.
Product Features
1. Adopting advanced circuit processing technology, with stable performance and high sensitivity;
2. Multiple measuring ranges, capable of measuring up to 200m (water column pressure);
3. Adopting 316L stainless steel isolation membrane or anti-corrosion membrane, suitable for various measurement media;
4. Flexible configuration, different configurations can be selected according to needs;
5. Integrated or split type options are available;
6. Laser resistance temperature compensation, zero point and range can be adjusted on site;
7. Wide range, corrosion-resistant, suitable for various media;
Product application
Industrial field liquid level measurement and control, urban water supply and sewage treatment, petroleum, chemical, power plants, hydrological monitoring
Measurement and control of liquid levels in fields such as reservoirs, dams, and hydropower construction.
Performance parameters
| Measurement form and scope: | 0~1~200mH2O; | ||||||||||||||||||
| Allow overload: | 2 times the full-scale pressure; | ||||||||||||||||||
| Working temperature: | -20~80℃， | ||||||||||||||||||
| Temperature compensation: | -10~70℃， | ||||||||||||||||||
| Storage temperature: | -40~80℃， | ||||||||||||||||||
| Accuracy: | 0.25% FS (typical) 0.5% FS (maximum); | ||||||||||||||||||
| Stability error: | 0.2% FS (typical), 0.5% FS (maximum); | ||||||||||||||||||
| Temperature drift coefficient: | 0.01% FS (typical, range not less than 5mH2O) 0.03% FS (typical, range less than 5mH2O); | ||||||||||||||||||
| Output signal: | (4~20) mA (two/three wire system) （0~10/20)mA、（0~5）V、 | ||||||||||||||||||
| （1~5）V、（0~10）V; | |||||||||||||||||||
| Power supply: | 15-36VDC (calibrated voltage 24VDC); | ||||||||||||||||||
| Load (Ω): | Current output type<(U-15V)/0.02A, current output type>5k; | ||||||||||||||||||
| Shell material: | Aluminum alloy; | ||||||||||||||||||
| Diaphragm: | 316L stainless steel; Polytetrafluoroethylene anti-corrosion treatment membrane | ||||||||||||||||||
| Cable: | Specialized waterproof and breathable cable; | ||||||||||||||||||
| Mechanical protection: | IP68 (pressure sensor section), IP65 (junction box transmitter section); | ||||||||||||||||||

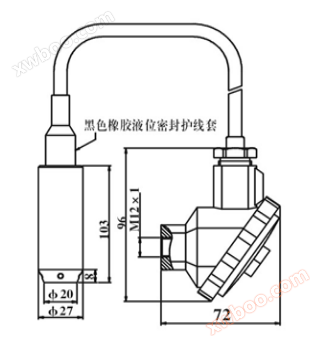

Exterior structure (unit: mm)
Type A junction box
B-type junction box
Selection code
| 2301 - | 1 | - | 2 | - | 3 | - | 4 | - | 5 | - | 6 | ||||||||
| 1 | principles and applications | ||||||||||||||||||
| 1 | Diffuse silicon universal type | ||||||||||||||||||
| 2 | Ceramic capacitive type | ||||||||||||||||||
| 3 | Polytetrafluoroethylene anti-corrosion type (PTFE) | ||||||||||||||||||
| 2 | Exterior structure | ||||||||||||||||||
| A | Ordinary small junction box | ||||||||||||||||||
| B | 2088 shell (without display) | ||||||||||||||||||
| BD | 2088 shell LED meter display | ||||||||||||||||||
| 3 | output signal | ||||||||||||||||||
| E1 | (0~5)VDC | ||||||||||||||||||
| E2 | 2-wire system (4~20) mA (default) | ||||||||||||||||||
| E3 | (0~10）mA | ||||||||||||||||||
| E4 | Other notes | ||||||||||||||||||
| 4 | accuracy | ||||||||||||||||||
| A1 | 0.1%F.S | A3 | 0.5%F.S | ||||||||||||||||
| A2 | 0.25%F.S | ||||||||||||||||||
| 5 | probe Type | ||||||||||||||||||
| C1 | Default to standard type (non anti-corrosion type) | ||||||||||||||||||
| C2 | Anti corrosion type (PTFE anti-corrosion treatment for the liquid receiving part) | ||||||||||||||||||
| 6 | Display mode (limited to split type with junction box type only) | ||||||||||||||||||
| D1 | No display (default) | D4 | LCD digital display from 0% to 100% (LCD) | ||||||||||||||||
| D2 | 0~100% linear indication | D5 | LED digital tube displays 0-100% | ||||||||||||||||
| D3 | LCD digital range display (LCD) | ||||||||||||||||||
| 7 | OEM customization | ||||||||||||||||||
| / | Regular shipment without customized content | ||||||||||||||||||
| A | Nameless light plate customized product | ||||||||||||||||||
| B | Designated nameplate, designated trademark product | ||||||||||||||||||
Selection Tips
1. When selecting, pay attention to the compatibility between the tested medium and the part of the product in contact
2. There are two types of cable materials, one is a regular cable with an air duct, and the other is an anti-corrosion cable, which can be selected for use.
3. When ordering a transmitter with an LCD or LED header, the power supply of the transmitter should not be less than 20VDC
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. If the full range of the ordered product is less than 0.5m liquid level, our company provides products with 1.0 level accuracy.
6. Special requirements: such as strong vibration, instantaneous impact force, strong electromagnetic, and radio frequency interference, please consult with our company and indicate them in the order.
