1. Overview:

Laser metal melting for complex metal components

TruPrint 1000 provides you with all the advantages of additive manufacturing. By doing so, almost all geometric shapes of components can be manufactured. Complex shapes can also be easily and quickly converted from CAD sketches to metal 3D parts - with the best quality. TruPrint 1000 is used for small industrial single piece and small batch additive manufacturing. In addition, with the optional bundle laser system, up to 80% production efficiency improvement can be achieved, while ensuring extremely high customer order flexibility.

1. Easy and intuitive operation

Fast installation, ergonomic operation, and intuitive touch screen are the features of TruPrint 1000.

2. Fast processing speed

The coating system achieves parallel powder scraping and laser irradiation during a certain period of time.

3. Maximum production efficiency

With the optional bundle laser system, the production of parts in the same time can be increased by up to 80%

4. Mobile operation and monitoring

With the help of a tablet, TruPrint 1000 can be flexibly operated and controlled through an app.

5. Rapid global support

Quickly resolve technical issues through remote services and Visual Online Support (VOS).

6. Personalized adjustment

Select the appropriate kit from the optional kits available in a specific industry.

	2. Dry powder: Powder suitable for your application Multiple metals can be applied to 3D printing of metal parts. Different raw materials have different requirements for machines. TRUMPF provides you with one-stop machines and quality assured powders directly. Therefore, you can be confident that the powder is perfectly suitable for TruPrint 1000. In addition to providing powders, TRUMPF also offers corresponding parameter sets and substrates. This allows you to obtain a complete solution. The supply scope includes powders of materials such as stainless steel, tool steel, cobalt chromium alloy, titanium, precious metals, and bronze.
3. Monitoring: Additive Manufacturing Monitoring Solution The TRUMPF intelligent monitoring solution can monitor and analyze the LMF process of TruPrint machines. The provided solutions include process monitoring, status monitoring, and performance monitoring. As a result, your overall machine equipment can maintain high transparency, allowing for convenient archiving of feature indices in addition to remote access.
	4. Software: TruTops Print with Siemens NX software package At the beginning of the additive manufacturing process chain, data is prepared for 3D design and processing programs. As a development partner of Siemens, TRUMPF has provided a consistent software solution with a unified user interface for the first time through the 'TruTops Print with Siemens NX' software package, without the need for system interruption. The intelligent process chain of this software solution can provide high process reliability, as the tools used for developing, simulating, 3D printing, and CNC programming metal parts are merged into the same system, eliminating the need for data conversion in STL. In addition, the software package also integrates TRUMPF Build Processor for processing molding work and managing parameters. Save time and costs through clear workflows.

5. Options:

Configure corresponding options for TruPrint 1000 based on the technical requirements proposed by the application. In addition to the optional bundle laser system, there are four customized sets for different industries for you to choose from.

1. Selection of bundle laser system

Using a bundle laser system to improve production efficiency: Two TRUMPF fiber lasers, each with a power of 200 W, emit beams simultaneously in the structural space, allowing for flexible production of up to 80% more parts in the same amount of time. This achieves faster part availability and extremely high customer order flexibility.

2. Industrial kit

The TruPrint 1000 industrial kit is tailored to meet the stringent requirements of industrial enterprises. It can reliably process a wide range of materials. The optional 50 ppm oxygen sensor and glove box are included in this package, with a door with glove holes replacing traditional machining doors. This method allows for unpacking in a protected gas environment.

3. Laboratory kit

The TruPrint 1000 laboratory kit provides the highest flexibility for research and development institutions, such as in material development. In addition to the 50 ppm oxygen sensor and glove box, this option package also includes a fine filter in the gas circulation and preparation measures for replaceable cylinders.

4. Dental set

The TruPrint 1000 dental kit can economically produce customized dental products, such as crowns or implants, with permission. This optional set includes a license to manufacture dental products.

5. Jewelry Set

The TruPrint 1000 jewelry set provides the best configuration for fine processing of precious metals in jewelry production. In addition to being used for replaceable cylinders to improve machine tool usability and adjusting the preparation measures for scraping powder according to component geometry, this option package also includes a default focal diameter of 30 μ m. The latter can improve surface quality and laser power density to produce finer structures.

6. Application:

	Dentistry TruPrint 1000 can economically manufacture high-quality personalized dental products, such as implants or crowns made of cobalt chromium alloy.
Prototype manufacturing Use TruPrint 1000 to quickly generate prototypes, such as this turbine used in automotive manufacturing. It can be implemented quickly and easily at any time, such as optimizing and adjusting the prototype of the flow conditions in this example.
	Energy and Turbine Additive manufacturing enables flexible manufacturing of components such as burner heads without the use of molds.

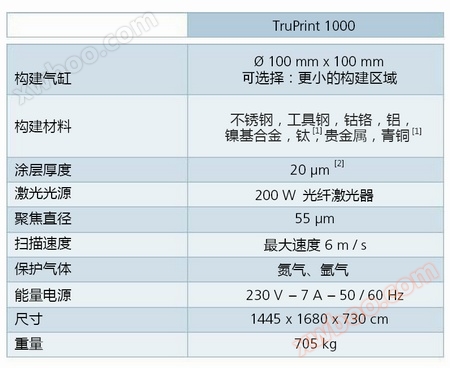

7. Technical parameters:
