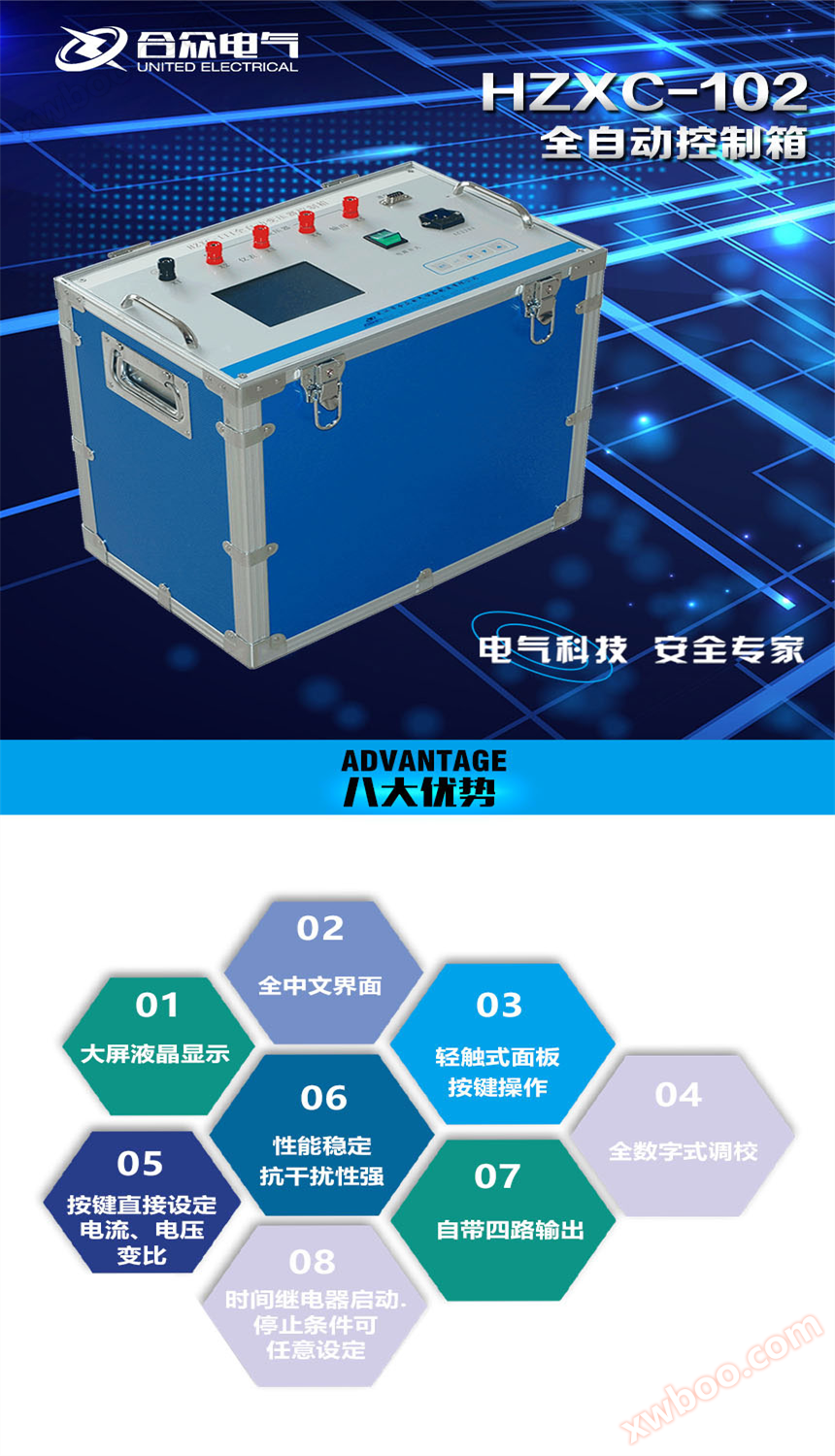

Fully automatic test transformer control box HZXC-102 (discontinued)
The fully automatic test transformer control box HZXC-102 (discontinued) is designed according to the latest national standards in the power industry.
Product details
HZXC-102 series fully automatic test transformer control boxThe newly upgraded version that has been discontinued has been launched, and other models of test transformer control boxes can be selected.
1、 Product Overview:
The HZXC-102 series fully automatic test transformer control box is designed according to the latest national power industry standards. The new intelligent voltage withstand test equipment with advanced performance is a specialized supporting voltage withstand equipment for various lightweight test transformers, and can also be used as an adjustable power supply. Execution standard: DL/T474.4-2006.
2、 Product features:
1. The four sets of data including date, voltage, current, and time are displayed on a blue 160 large LCD screen with backlight for clear and intuitive readings.
2. According to user needs, it can be equipped with printing function and RS232 microcomputer communication function
3. The fully Chinese interface displays the working status with simple and clear operation, and is widely applicable.
4. All functions of the touch sensitive panel can be operated through button settings, which improves the safety and reliability of the product.
5. The fully digital calibration eliminates the outdated potentiometer adjustment method and is extremely convenient for on-site use.
6. The button can directly set the current and voltage transformation ratio, and can be easily applied under different transformation ratio inputs.
7. A single button can easily display voltage in both AC and DC modes.
8. The optimized stepper motor control method combines hardware and software anti-interference technology, with precise and fast positioning, stable performance, and strong anti-interference ability.
9. Equipped with four outputs, it can be used for overcurrent, overvoltage protection, and other different situations.
10. The time relay is activated The stopping conditions can be set arbitrarily, and the time range can be set from 1 second to 9999 seconds.
Product Parameters
Model parameter correspondence table
|
Model HZXC-102 |
capacity KVA |
Power supply |
Output |
operation way |
reference weight |
measurement error |
|||
|
phase number |
（V） |
（A） |
（V） |
（A） |
|||||
|
2/220 |
2 |
1 |
220 |
9 |
0-250 |
8 |
automatic |
14 |
< 0.5% |
|
3/220 |
3 |
1 |
220 |
14 |
0-250 |
12 |
automatic |
16 |
|
|
5/220 |
5 |
1 |
220 |
50 |
0-250 |
20 |
automatic |
18 |
|
|
Note: Our company can customize products with different specifications and special functions according to user requirements. |
|||||||||
Product Brochure
Product accessories
|
name |
quantity |
unit |
|
Control box host |
1 |
Taiwan |
|
power cord |
1 |
root |
|
Instruction Manual |
1 |
this |
|
Inspection Report |
1 |
copy |
|
Certificate of Conformity |
1 |
Zhang |
Product Atlas
-

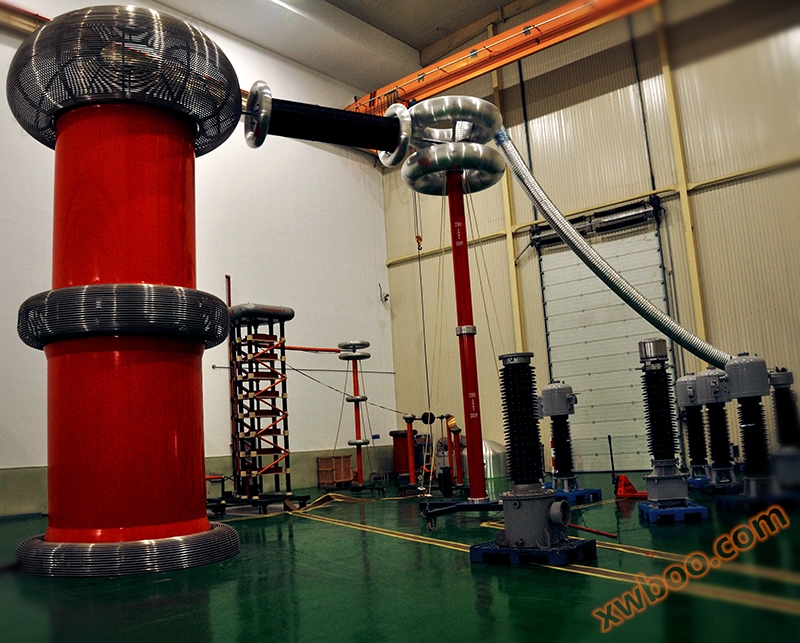

No partial discharge test transformer test site
-

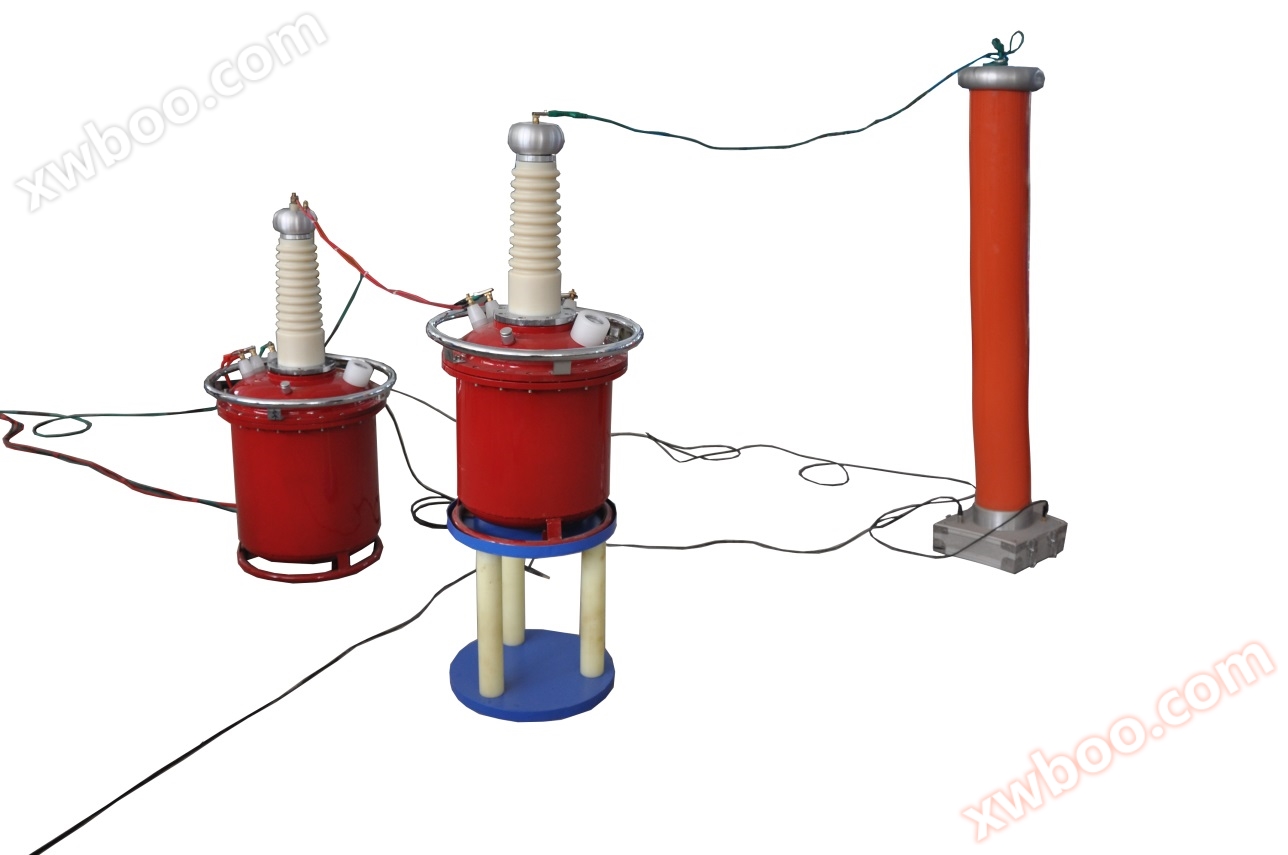

Cascade test transformer
-

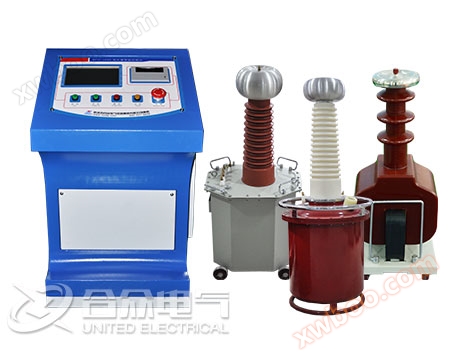

Intelligent type of power frequency test transformer
-

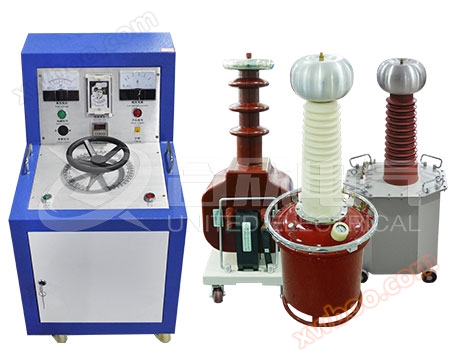

High voltage test transformer test transformer

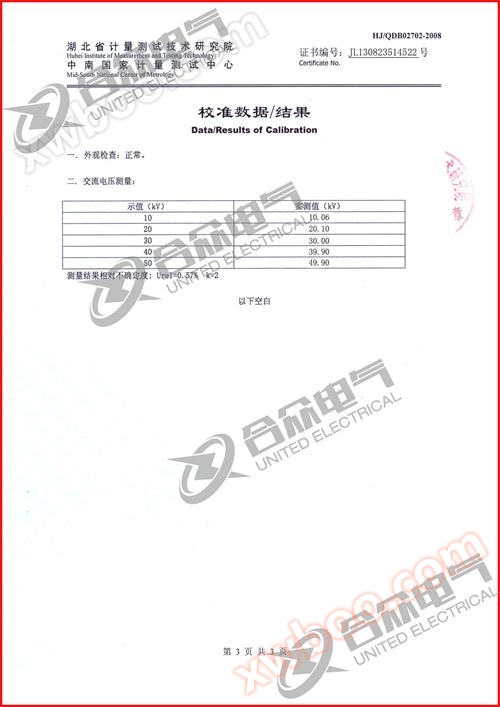

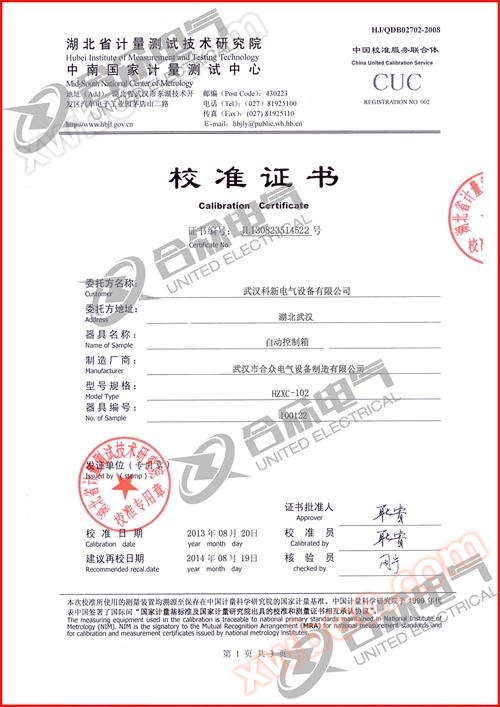

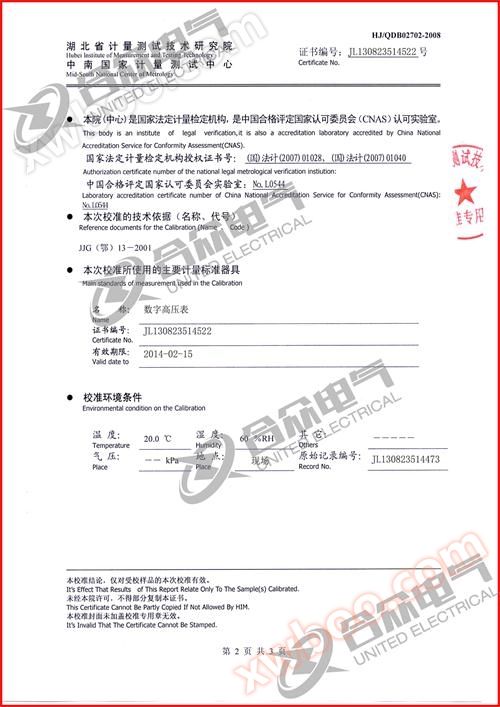

Product Certificate
The enterprise's products are strictly produced in accordance with international and national standards and industry regulations, and have passed the testing of national, provincial, and municipal power research institutes, measurement centers, and authoritative power departments. They have fully passed the ISO9001 international quality management system certification, the People's Republic of China Manufacturing Measuring Instrument License, GB/T19001-2008 quality management system requirements.
