Forklift stretch film winding machine manufacturer

Foshan Chancheng ROBOPAC Automation Packaging EquipmentIn terms of technological research and development, the factory has a high-quality and high-tech team; We have multiple senior engineers and a large number of well-trained and skilled senior technicians.

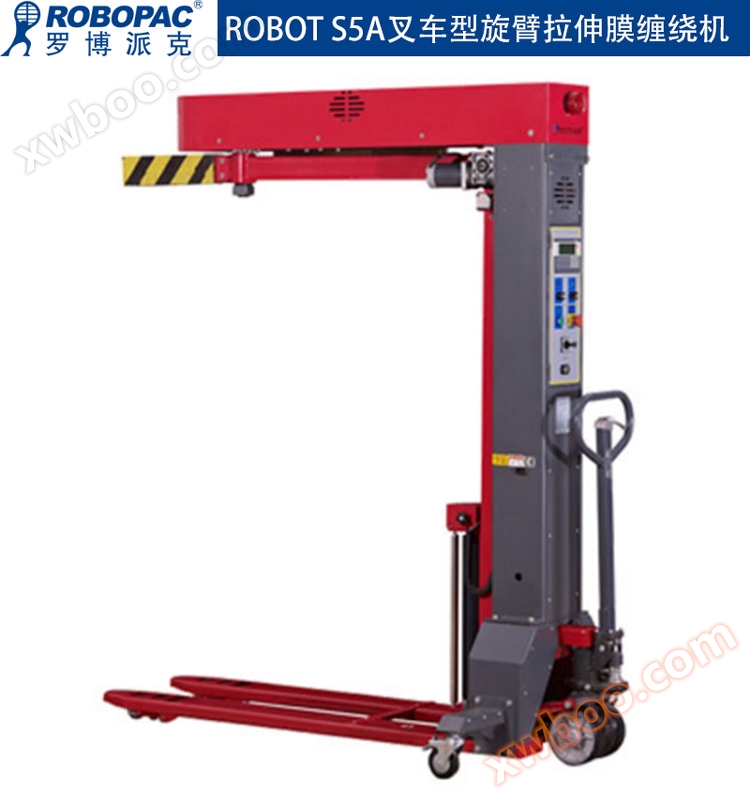

Technical parameters of forklift cantilever automatic winding machine:
Name: Forklift Cantilever Automatic Winding Machine;
Brand: ROBOPAC;
Control system: PLC integrated machine;
Effective packaging height: 1800mm;
Applicable pallet size: 1100 * 1100mm;
Applicable pallet size: up to a maximum diameter (diagonal) of 1500mm;
Forklift load capacity: 2000KG;
Adopting rechargeable mobile power supply, not limited by outdoor locations;
Charger power supply: 220V/50HZ;
Equipped with a manual forklift, objects can be left in place without moving before being packaged, effectively avoiding the looseness of goods.

The manual winding method of the stretch film winding machine produced by Foshan Chancheng ROBOPAC Automation Packaging Equipment Factory:

Lower the film rack to the bottom, place the goods on the chassis, place the film roll on the roll holder, thread the film in the film threading method, and then start the turntable motor to rotate the turntable. At this time, the film will be wrapped at the bottom of the goods. When the number of winding turns reaches the required level, press the film rack up button to raise the film rack to the required position (photoelectric height measurement is effective); Press the membrane rack lowering button to lower the membrane rack to the bottom. Repeat the above process to complete the packaging, press stop to end. Not only stretch film winding machines, but other packaging equipment such as balers and shrinking machines also have this manual operation.
