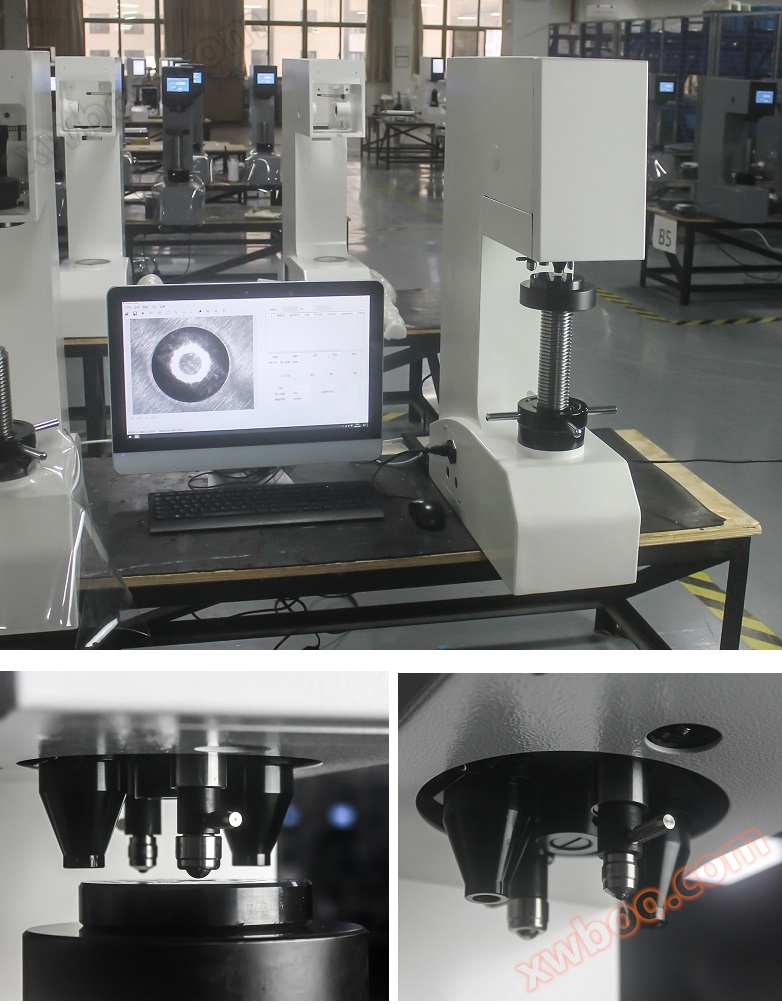

Computer automatic turret dual head dual objective Brinell hardness tester
Computer automatic turret dual head dual objective Brinell hardness tester
Product details
Product Introduction
This seriesBrinell hardness testerfromBrinell hardness testerPerfectly combined with computers, it forms a series of Brinell hardness tester systems with extremely high cost-effectiveness and convenient use.
main features
1. Equipped with a computer, the hardness tester is controlled by the computer;
2. Adopting electronic electric loading, high-precision sensors, and a unique closed-loop control system, with 10 levels of force and automatic compensation for each level of force;
3. The test force can be corrected by software using standard force gauges or standard blocks;
4. Automatic loading and unloading;
5. Automatic turret, during testing, the pressure head and objective lens automatically switch to each other, the testing point automatically locates accurately, loads automatically, and unloads automatically;
6. The host comes with dual pressure heads (10, 5, 2.5mm, 1mm optional) and dual objective lenses (dual magnification 20X/40X), which do not require replacement of pressure heads and measurement objectives for large and small Brinell indentation;
7. The sample (Z-axis) automatically rises and falls, achieving one click hardness value (WHB-3000PZ type);
8. Adopting a 5-megapixel industrial grade digital camera, the image is clear;
9. Computer automatically measures indentation size and hardness value;
10. Hardness value correction can be calibrated according to standard hardness blocks or length scales;
11. According to GB/ASTM standards, it automatically performs various hardness conversions such as Brinell Rockwell Vickers;
12. Powerful database function, permanent storage, easy query;
13. The interface and functions can be customized, such as external QR code scanning and other functions (optional);
14. Automatically generate customized inspection reports for users. Automatically record measurement data and output WORD reports according to user customization; Automatically record measurement data and save all data in EXCEL format.
technical parameter
technical parameter
| model | WHB-3000PD |
| name | Computer automatic turret dual pressure head, dual objective Brinell hardness tester |
| computer | Integrated machine or industrial control touch screen computer (optional) |
| Rotating tower | Automatic turntable |
| Pressure head | Double pressure head: Install 2 pressure heads simultaneously |
| objective lense | Dual objective lens: Install 2 objective lenses (20x and 40x) simultaneously |
| Brinell hardness scale | HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500 HBW10/3000 |
| Test force (Kgf) |
62.5kgf (612.9N), 100kgf (980.7N), 125kgf (1226N) 187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N), 750kgf (7355N), 1000kgf (9807N), 1500kgf (14710N), 3000kgf (29420N) |
| Compliant with standards | BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
| Test force accuracy | 62.5～250kgf≤1% 500～3000kgf≤0.5% |
| Resolution of measuring device | 0.1um |
| Resolution of hardness values | 0.1HBW |
| Load retention time | 0～99S |
| Maximum specimen height | 200mm (customizable) |
| Distance from head to machine wall | 155mm (customizable) |
| computer | 19 inch monitor; WIN10 operating system |
| camera | 500 pixels |
| weight | 110kg |
| Power Supply | AC220+5%,50～60Hz |
