[Scope of Application]:
Suitable for testing the color fastness of various textiles to washing, dry cleaning, and shrinkageIt can also be used to assess the washing fastness performance of dyes.
[Application Standards]:
GB/T3921.1-5, ISO105-C10, GB5711, GB/T12490, JIS L0860, JIS L0844 and other standards.
[Instrument Characteristics]:
1) This instrument is designed by drawing on the advantages of similar instruments at home and abroad,
2) The display adopts a touch screen, with a simple and easy to understand interface, simple operation, and sensitive touch.
3) All are made of high-quality 304 stainless steel, with a simple and elegant appearance.
4) The insulation material adopts high-quality glass wool, which has better insulation effect and is energy-saving and environmentally friendly.
5) The rotating structure adopts a low-noise reducer and synchronous belt, which runs smoothly and has very low noise.
6) The temperature control adopts optimized PID algorithm, with fast heating speed and small control fluctuations.
7) Real time curve display of experimental status data for better observation of temperature changes.
8) There are 5 sets of standard fixed parameters, and customers can freely set 3 sets of experimental parameters.
9) Door status detection device, stop the motor rotation when opening the door. Prevent hot water from scalding people
10) It is possible to install both national and American standard cups simultaneously, or separately.

[Technical Description]:
1. Working voltage: AC380V/50HZ (three-phase five wire system)
2. Maximum power of the instrument: 6.5kW
3. Rotation speed: 40 ± 2r/min

5Distance from the center of the rotating frame to the bottom of the container:45mm±10mm
6Test cup size: (National standard)550ml、 (American standard) 1200ml
7. Timing range: 0.1～999.9minTime control error: ＜0.1min
8. Set temperature range: room temperature to 95 ℃,
9Temperature control fluctuation: ＜±1℃
10Number of test cups: (National standard)12 pieces, (American standard) 6 pieces (customized); 24 pieces (national standard), 12 pieces (American standard) (customized)
11. Heating method: electric heating tube heating
12. Instrument placement: Foot mounted pulley type
[Optional consumables]:
1. Staining sample card, discoloration sample card
2. AATCC Multi Fiber Lining/SDC Multi Fiber Lining
3. Standard soap flakes

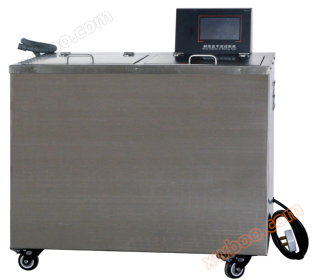

Physical image:
