19 inch open touch display
Advantages of 19 inch open touch display products: * High stability will not drift due to changes in time and environment
Product details
19 inch open touch display
Product advantages:*The high stability will not drift due to changes in time or environment.
*Highly adaptable to interference from current, voltage, and static electricity, suitable for certain harsh environmental conditions.
*High transparency without intermediate medium, high transparency, up to 100%.
*Long service life, not afraid of scratches; The touch density can reach 4096 * 4096, and the touch lifespan is extremely long.
*Good usability, no need for force to touch, no special requirements for the touch object, regardless of whether the touch object is hard or conductive, it does not affect normal use
Display parameters:
| size | 19 inches |
| Overall dimensions | 430mm*357mm*43mm |
| resolution | 1024x 768 |
| dot pitch | 0.264mm |
| pattern | TN |
| Color count | 16.7M |
| Color saturation (NTSC%) | 72 |
| Perspective (H/V) | 160 / 160 |
| Brightness (cd/m ²) | 300 |
| contrast | 1000 : 1 |
| Response time (ms) (at 25 ° C) | 5 (on/off) |
| Power consumption (W) (typ) | 24.0 |
| interface | VGA/DVI/USB/RS232/PS2 |
| Power supply voltage (V) | 110~240 |
| backlight | 4 CCFL |
| Weight (g) | 2120 |
| aspect ratio | 16 : 10 |
Touch parameters:
| surface hardness | 3H |
| transmittance | 80%↑ |
| Operating Temperature | -10C ~60C |
| Working Voltage | DC5V |
| resistance | 200Ω~900Ω |
| linear | 1.5% |
| film thickness | 0.175mm, 0.188mm |
| glass thickness | 0.7mm, 1.1mm,1.8mm |
| Operating temperature | 20~150g |
| Storage temperature | -30℃ ~80 ℃ |
| operating current | 5mA~25mA |
| humidity | <95% |
| insulation resistance | 20MΩ↑ ＠ DC25V |

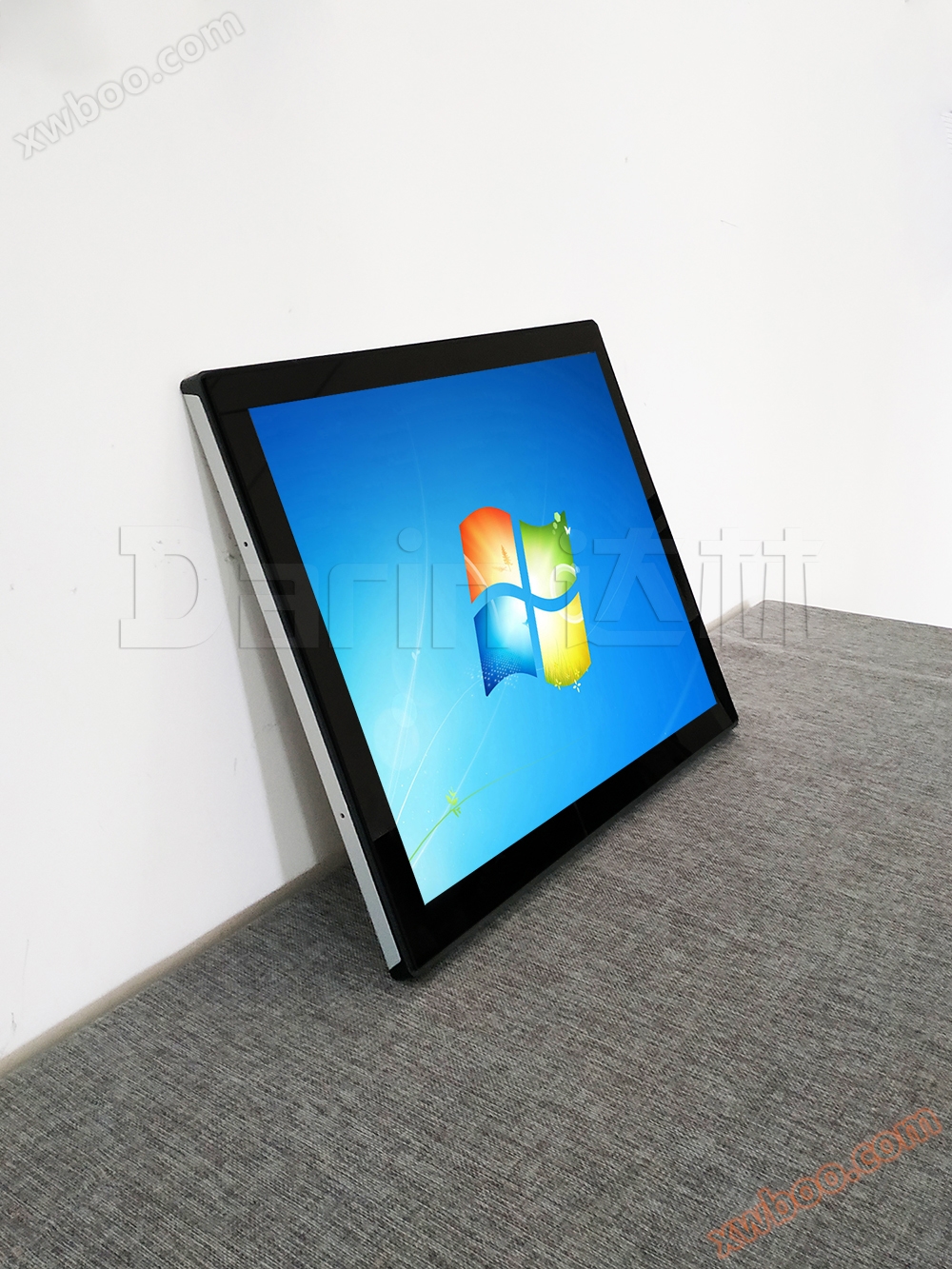

Product real-life photos
